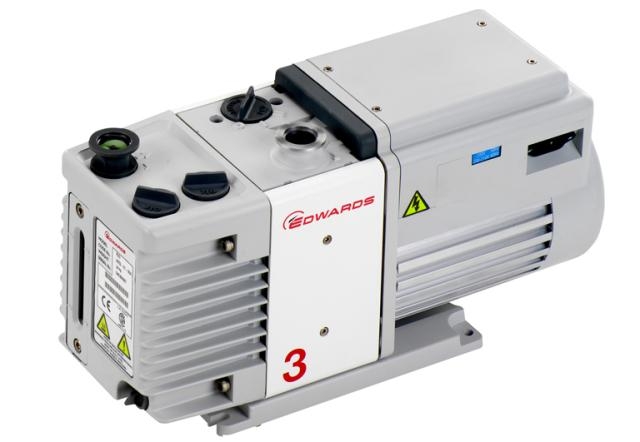

RV3

Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.

All pumps are approved to UL and CSA standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.

Supplied with: 1 litre of Ultragrade 19 oil, inlet filter and O-ring. Fomblin® must be purchased separately for PFPE RV pumps.

Informacje

Features and Benefits

  • 48 dB(A) and intrusive frequencies minimised.
  • Dual mode. Suitable for high throughput and high vacuum applications.
  • Easy-to-use gas ballast.
  • Fast acting inlet valve for system protection.
  • High torque, dual voltage/dual frequency motor, electronic start relay.
  • Efficient high pressure lubrication.
  • Oil-tight with printed gaskets, effective shaft seals.
  • Clamped-in sight glass.
  • Hi-tech polymer blades, large diameter, easy-clean oil passages.
  • Consistent, built-in quality, cast bar construction.

Applications

  • Analytical instruments
  • Laboratory bench top vacuum
  • Turbomolecuar backing pumps
  • Freeze drying
  • Research and development
  • Centrifuges, ultra-high speed
  • Coating
  • Degassing/curing - oil, epoxy resin
  • Distillation/extraction/filtration
  • Furnaces
  • Gas bottle filling/emptying
  • Gel drying
  • Glove boxes, ovens
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Refrigeration manufacture
  • Rotary, centirfugal evaporators
  • Scanning electron microscopes - SEM
  • SEM/FIB (ion beam repair)
  • Solvent recovery
  • Surface science instruments
Dane techniczne
Displacement
  50Hz 3.7 m3h-1 / 2.2 ft3min-1
  60Hz 4.5 m3h-1 / 2.6 ft3min-1
Speed (Pneurop 6602)
  50Hz 3.3 m3h-1 / 2 ft3min-1
  60Hz 3.9 m3h-1 / 2.3 ft3min-1
Ultimate pressure 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I 3.0 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II 1.2 x 10-1 mbar / 9.1 x 10-2 Torr
Ultimate Pressure with Fomblin® 2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour 80 mbar / 60 Torr
Max water vapour pumping rate – GB I 60 gh-1
Max water vapour pumping rate – GB II 220 gh-1
Max allowed outlet pressure 0.2 bar gauge / 3 psig
Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig
Motor power 50/60Hz 450 / 550W
Power connector 1-ph IEC EN60320 C13
Nominal rotation speed 50/60Hz 1500 / 1800rpm
Weight (without oil) 25 kg / 55 lb
Oil capacity min/max 0.42/0.7 litres
Recommended oil Ultragrade 19
Inlet flange NW25
Exhaust flange NW25
Noise level 48 dB(A) @ 50 Hz
Operating temperature range 12 – 40 °C
