QSB63

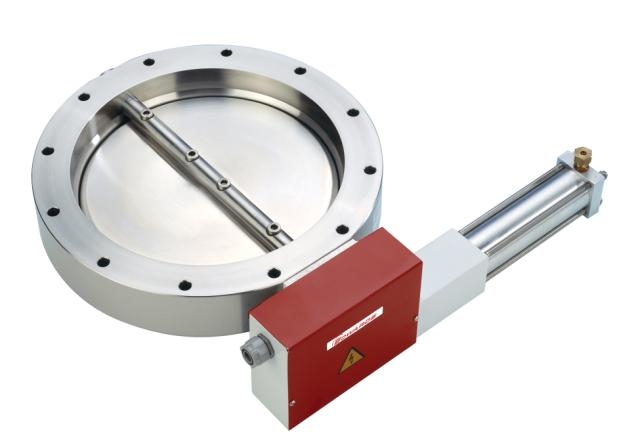

The QSB quarter swing valves are compact, quick acting, high conductance isolation valves. The QSB valves have a polished, stainless steel, ISO flanged body with fluoroelastomer ‘O’ ring sealed valve plate and shaft. The valve plate ‘O’ ring groove is vented to help maintain a stable high vacuum. The valve shaft ‘O’ rings and bearings are lubricated with Fomblin® grease to prevent gas bursts from behind the shaft seals.
This valve is supplied with a Co-Seal.
Informacje
Features and Benefits
- Manual operation
- High conductivity
- Resists atmosphere in either direction
- Compact and quick acting
- Corrosion resistant construction
Dane techniczne
| Valve plate material | AISI 304 stainless steel |
| Operating pressure range | 10-9 - 3000 mbar |
| 8 x 10-10 - 2250 Torr | |
| Max pressure differential | 1000 mbar / 750 Torr |
| Operating temp range | 5 - 40 °C |
| Max baking temp | 200 °C (without actuator) |
| Leak rate | < 10-9 mbar ls-1 |
| 8 x 10-10 Torr ls-1 | |
| Pneumatic valves only: | |
| Reliability (MTTF) | >1.5 x 105 cycles |
| Pneumatic connectors | 1/8 inch BSP, for 6mm OD tube |
| Number of connectors | |
| QSB63, QSB100, QSB160 | 2 |
| Reed switch rating | |
| Max voltage | 30V |
| Max current | 500mA |
| Max Power | 6W |
| Reed switch connectors | 3m flying leads |
| Microswitch rating | 5A at 48V |
| Microswitch connectors | |
| QSB63, QSB100, QSB160 | Solder tags |
| Flange Size | ISO63 up to ISO250 |
| Conductance * | 420 ls-1 |
| QSB63 | 420 ls-1 |
| QSB100 | 1250 ls-1 |
| QSB160 | 2700 ls-1 |
| Recommended pneumatic pressure~ (bar) | |
| QSB63, QSB100, QSB160 | 2.8 to 4.2 |
* Conductance of equivalent tube length
~ Pneumatic operation
Pliki do pobrania
QSB63P and QSB100P Pneumatically Operated Valves with Reed Switches Instruction Manual
