PV16EKA

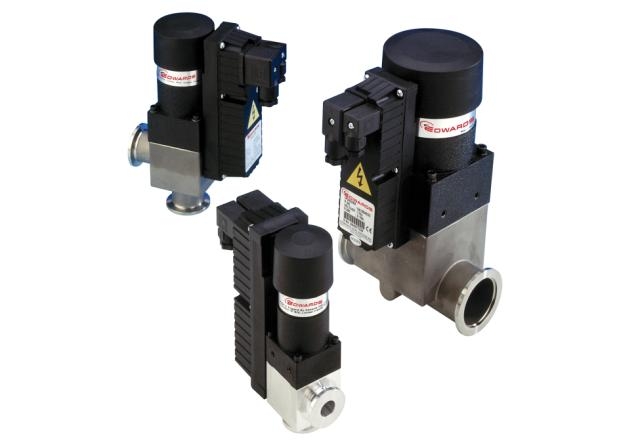

The Edwards PVEK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar. A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.
Bellows sealed, the PVEK solenoid operated valves are available with either aluminum (A) or stainless steel (S) bodies, and in right-angle (PVEK) and in-line (IPVEK) versions, with an overall MTTF of up to 130,000 cycles.
Informacje
Features and Benefits
- Transient high power for opening - electronically switched
- Low energy consumption in the ‘hold open’ position
- Enclosure rating to IP55
- Grease free vacuum
- MTTF up to 500000 cycles
- Circuit protected against transient low voltages
- Improved circuit board reliability
- User friendly plug and socket connections to IP65
Dane techniczne
| Valve actuation type | Single acting, electrically opened, spring closed |
| Pressure range valve open | 1 x 10-9 to 2000 mbar |
| 7.5 x 10-10 to 1500 Torr (30 psi) | |
| Maximum press differential | |
| opening/closing | 1000 mbar / 750 Torr |
| Leak rate | < 1 x 10-9 mbar ls- 1 |
| < 7.5 x 10-10 Torr ls- 1 | |
| Reed switch (peak ratings) | |
| Maximum voltage | 24 V a.c. or d.c. |
| Maximum current | 0.25 A |
| Maximum power | 3 VA |
| Maximum cycle frequency | 400 h-1 |
| Ambient operating temperature | |
| PV10/16 | 5 °C to 45 °C |
| Valve temperature above ambient | |
| Rapid cycling | |
| PV10/16 | <25 °C |
| Valve open | <10 °C |
| Bellows reliability MTTF | |
| PV10/16 | 500000 cycles |
| Construction materials | |
| PVEKA | HE30TF aluminium |
| PVEKS | AISI304 stainless steel |
| Bellows | AISI316L stainless steel |
| O-ring | Fluoroelastomer |
