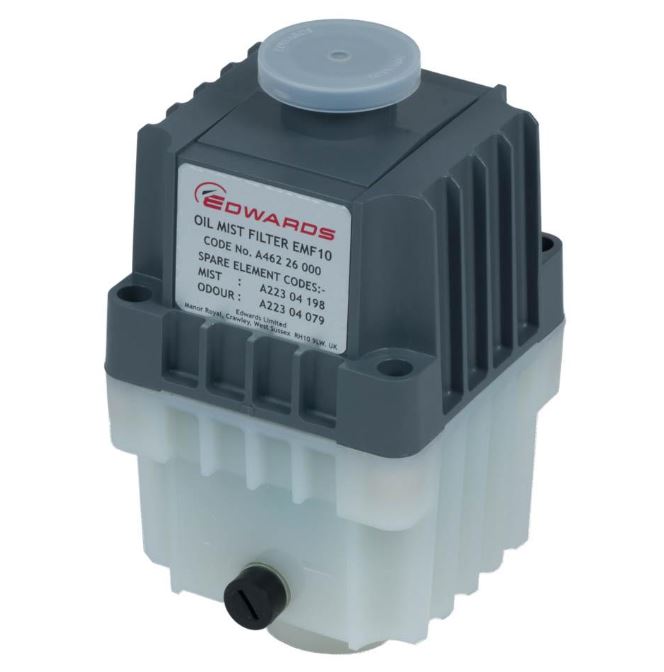

Oil Mist Filter EMF10
Oil Mist Filter For RV3, RV5, RV8, RV12 Vacuum Pumps
BRAND NEW Edwards EMF10 Oil Mist Exhaust Filter, KF25 Ports, Designed for Edwards for RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12 Vacuum Pumps (A46226000)
This EMF Outlet Oil Mist Filter is suitable for all Edwards Rotary Vane pumps up to E2M18. This EMF10 EMF-10 exhaust filter assembly is supplied with NW25 clamp, centering ring, O-Ring, NW25 to 3/4 BSP adaptor, 1 oil element filter and 1 odour element. The benefits of the oil mist filter includes: protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. The white bottom half of the body is semi-transparent, allowing the oil level to be monitored.
Edwards EMF10 (EMF-10) Oil Mist Filter Specifications:
Fits Pump Models: RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12
Inlet & Exhaust Flanges: ISO KF25 (NW25)
Description
- Rated flow of 12 m3h
- Maximum back pressure of 12 psig
- Relief pressure of 20 psig
- Replacement/spare part
- Manufactured from epoxy impregnated borosilicate glass fiber
|
Product Type |
EMF10 Oil Mist Element |
|
Material |
Epoxy-impregnated Borosilicate Glass Fiber |
|
Weight (Metric) |
12 oz. |
|
For Use With (Application) |
Used to separate and trap oil mist and odors discharged with the exhaust from oil sealed rotary vacuum pumps. |
|
Pressure |
Back pressure of 12 psig, relief pressure of 20 psig |
