IPV40MKA

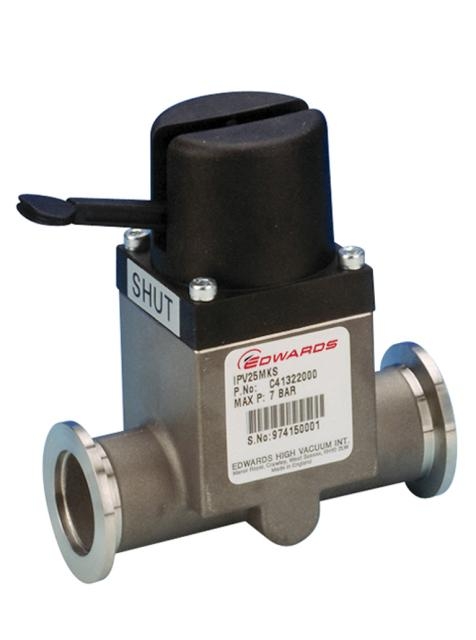

The IPVMKA (aluminum body) is a quick acting, in-line lever operated valve. The lever, connected to a self-lubricating plastic cam-piston, actuates the valve stem and valve plate through PTFE bearings. The valve plate ‘O’ ring groove is vented to prevent gas bursts. The valves are designed to operate down to 10- 9 mbar / 8 x 10-10 Torr and up to a pressure of 2100 mbar / 1575 Torr (30 psi).
Dane techniczne
| Construction material | |
| Body | HE30TF grade aluminium or AISI304 grade stainless steel |
| Bellows | AISI 316L stainless steel |
| O-ring | Fluoroelastomer |
| Leak rate | < 10- 9 mbar ls- 1 |
| < 7.5 x 10-10 Torr ls-1 | |
| Operating pressure range | 10- 9 - 2100 mbar |
| 8 x 10-10 - 1575 Torr (30 psi) | |
| Molecular conductance | 22 ls-1 |
| Maximum baking temperature | 100 °C |
| Reliability (MTTF) | 100000 operations |
| Weight | Aluminium | Stainless Steel |
| IPV40MK | 1400g / 49oz | 3300g / 116oz |
