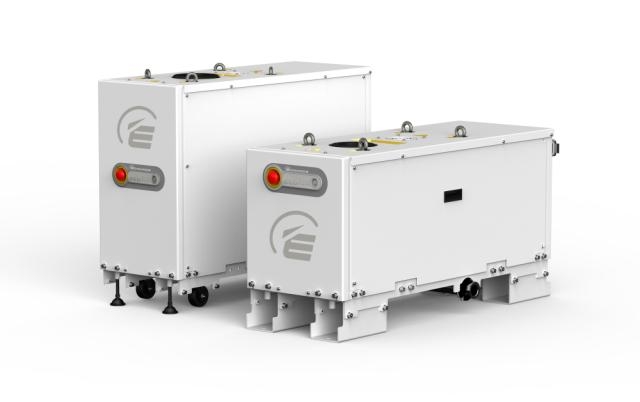

GXS450/4200F
Edwards, a pioneer in dry pumping technology, has more than 90 years experience in harsh process vacuum applications, including dust and process contaminants handling, with more than 150,000 pumps installed worldwide.
The GXS industrial dry screw pump incorporates innovative, patented design features that establish a new standard in dry pumping.
Informacje
Features and Benefits
- Designed for high reliability
- Adaptable to a wide range of applications
- Long service interval and easy swap-out
- Low cost of ownership
- Minimum workplace and environmental impact
- Simple to install and operate
- Ideal for integration into larger systems
Applications
- Solar
- Freeze drying
- Sterilisation
- Coating
- Metallurgy
- Leak detection
- Food packaging
- Vacuum chamber evacuation
- High purity gas cylinder filling
Dane techniczne
| GXS450/4200 | |
| Peak Pumping Speed | 3026 m3h-1 (1781 cfm) |
| Ultimate Pressure | 5.4 x 10-4 mbar (3.8 x 10-4 Torr) |
| Full Load Power | |
| @ ultimate pressure | 9.4 kW (12.6 hp) |
| @ peak pumping load | 21.1 kW (28.3 hp) |
| Cooling water flow @ min DP | 12 lmin-1 (3.2 galmin-1) |
| Cooling water DP across pump | 1.5 barg (22 psig) |
| Inlet connection | ISO160 |
| Exhaust connection | NW50 |
| Mass | 868 Kg (1914 lbs) |
| Lubrication volume | 3.6 l (1.0 gal) |
| Cooling water flow | 12 l min-1 (3.2galmin-1) |
| Cooling Water supply pressure (max) | 6.9 bar (100 psig) |
| Cooling Water temperature | 5-40 °C (41-104 °F) |
| Purge gas - pressure* | 2.5-6.9 bar (36-100 psig) |
| Purge gas – light duty* | 12 slm |
| Purge gas – medium duty* | 18-146 slm |
| High flow purge/solvent flush supply pressure | 2.5-6.9 bar (36-100 psig) |
| Noise | <64 dB(A) |
| Operating Temperature | 5-40 °C (41-104 °F) |
| Exhaust back pressure (max) | 1400 mbar (20 psia) |
| IP rating | 31 |
| Lubrication | PFPE Drynert® 25/6 |
| Monitoring & Control | |
| Standard | Front panel - Dashboard |
| Serial - RS232 | |
| Ethernet Webserver | |
| Option | Parallel – MCM MicroTim |
| Profibus DP | |
| Pump Display Terminal (PDT) | |
| FabWorks® |
