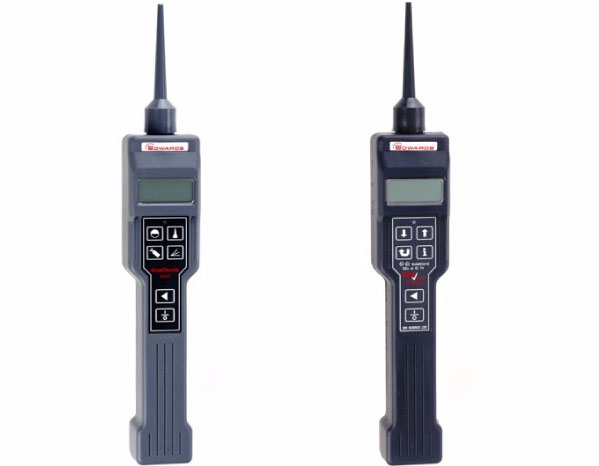

GasCheck G3 Leak Detector

Introduced as an enhanced replacement for the popular GasCheck 3000, the Gascheck G3 incorporates a new backlit dot matrix LCD for improving viewing in poor lighting and leak rate indication by both flashing LED and sounder, for easier use in all environments. In addition the GasCheck G3 has a new tactile keyboard with fewer keys and improved temperature stability for better performance in uncontrolled areas.

Features and Benefits

• Detect leaks with automatic and direct display of gas leak rate
• New, simple to interpret graphical icon display menu
• Choice of readings in cc/sec, mg/m³ or ppm
• Rapidly detects almost any known gas mixture – particularly sensitive to ammonia, argon, butane, helium
• Data logging facility – 10 data points with date and time stamp

Applications

• Quality assurance testing on manufactured component seals
• Laboratory applications, such as the detection of leaks from gas chromatographs, from mass spectrometers, from gas cylinders and fittings
• Industrial applications, such as the detection of leaks from gas installations, in cylinder receiving rooms, from pipeline assemblies, the detection of leaks from stored gases and the detection of vapours released from stored chemicals
• Medical applications, such as the detection of leaks from gas bottles and pipelines  and leak testing of membrane materials, glove boxes and so forth
• Pneumatic applications, such as leak testing of pipeline joints, gaskets and so forth
