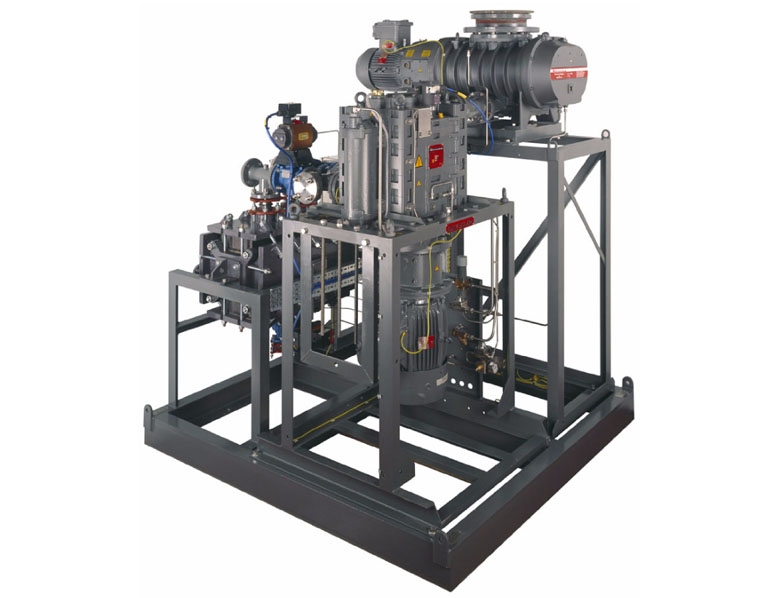

EDP pumps are based on Edwards’ oil-free, non-contacting, award-winning, reverse claw mechanism. They provide consistent vacuum at high efficiencies and low costs of ownership. Dry pumps completely eliminate all problems of process contamination and creation of polluted effluent, which are experienced with traditional wet vacuum pump technologies.

Informacje

Features & Benefits

Staged compression for optimum temperature profile within the pump and no requirement for cooling gas injection
Inherently free draining
Able to handle liquid or particulate carryover
Short gas path eliminates particulate build-up and corrosion - Edwards’ patented design
Can flush with solvents, water or steam

Applications

Drying
Distillation
Reactor service
Solvent recovery
House/Central vacuum

Dane techniczne

Maximum pumping speed
50 Hz	83 m³h^-1/ 49 ft³min^-1
60 Hz	102 m³h^-1/ 60 ft³min^-1
Capacity at 10 mbar (7.5 Torr)
50 Hz	75 m³h^-1/ 44 ft³min^-1
60 Hz	102 m³h^-1/ 60 ft³min^-1
Ultimate vacuum
50 Hz	0.5 mbar / 0.4 Torr
60 Hz	0.3 mbar / 0.2 Torr
Maximum back pressure
Standard	1150 mbar / 2.2 psig
Optional*	1300 mbar / 4.4 psig
Power consumption at 10 mbar (7.5 Torr)
50 Hz	3.3 kW / 4.4 hp
60 Hz	4.0 kW / 5.4 hp
Standard motor (380 – 400 V, 3ph, 50 Hz)	5.5 kW
Standard motor (200 – 460 V, 3ph, 60 Hz)	7.5 hp
Cooling water flow rate (adjustable)
50 Hz	1 – 8 lmin^-1/0.3 – 2.1 galmin^-1
60 Hz	1 – 10 lmin^-1/0.3 – 2.6 galmin^-1
Cooling water supply pressure	2 – 10 barg / 29 – 145 psig
Seal purge flow (maximum), regulated to 0.3 - 0.5 barg (5 – 7 psig)	20 l min^-1 / 0.7 ft³min^-1
Seal purge supply pressure(minimum - maximum)	2 – 10 barg / 29 – 145 psig
Noise (max. with exhaust silencer)	73 dB(A)
Weight (with frame and standard motor)
50 Hz	648 kg / 1429 lbs
60 Hz	650 kg / 1433 lbs
Inlet	2 ANSI / DN50
Outlet	1.5 ANSI / DN40
Pumping mechanism	3 stage reversed claw

* For this solution we consult Edwards
