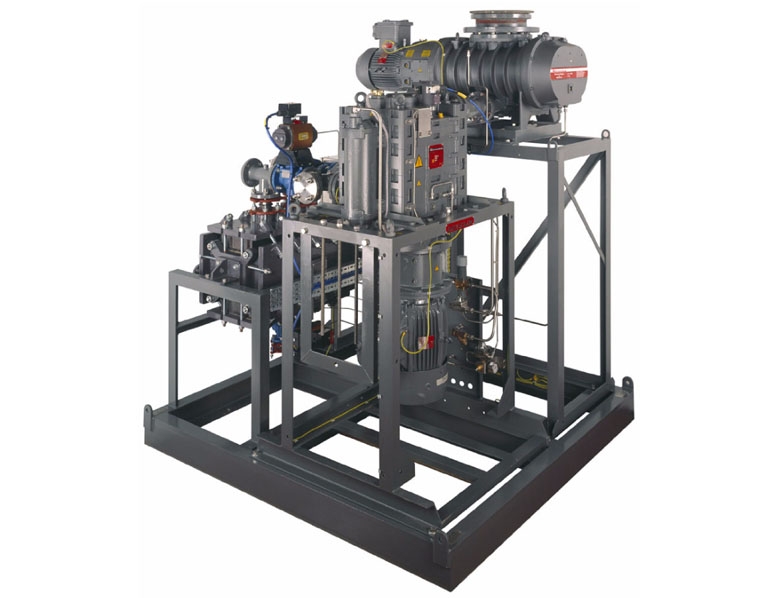

EDP250
EDP pumps are based on Edwards’ oil-free, non-contacting, award-winning, reverse claw mechanism. They provide consistent vacuum at high efficiencies and low costs of ownership. Dry pumps completely eliminate all problems of process contamination and creation of polluted effluent, which are experienced with traditional wet vacuum pump technologies.
Informacje
Features & Benefits
- Staged compression for optimum temperature profile within the pump and no requirement for cooling gas injection
- Inherently free draining
- Able to handle liquid or particulate carryover
- Short gas path eliminates particulate build-up and corrosion - Edwards’ patented design
- Can flush with solvents, water or steam
Applications
- Drying
- Distillation
- Reactor service
- Solvent recovery
- House/Central vacuum
Dane techniczne
| Maximum pumping speed | |
| 50 Hz | 260 m3h-1/ 320 ft3min-1 |
| 60 Hz | 153 m3h-1/ 188 ft3min-1 |
| Capacity at 10 mbar (7.5 Torr) | |
| 50 Hz | 255 m3h-1/ 150 ft3min-1 |
| 60 Hz | 315 m3h-1/ 185 ft3min-1 |
| Ultimate vacuum | |
| 50 Hz | 0.5 mbar / 0.4 Torr |
| 60 Hz | 0.2 mbar / 0.2 Torr |
| Maximum back pressure | |
| Standard | 1150 mbar / 2.2 psig |
| Optional* | 1300 mbar / 4.4 psig |
| Power consumption at 10 mbar (7.5 Torr) | |
| 50 Hz | 6.0 kW / 8.0 hp |
| 60 Hz | 6.0 kW / 8.0 hp |
| Standard motor (380 – 400 V, 3ph, 50 Hz) | |
| 50Hz | 11 kW |
| 60Hz | 15 kW |
| Standard motor (200 – 460 V, 3ph, 60 Hz) | |
| 50Hz | 15 hp |
| 60Hz | 20 hp |
| Cooling water flow rate (adjustable) | |
| 50 Hz | 1 – 10 lmin-1 /0.3 – 2.6 galmin-1 |
| 60 Hz | 1 – 10 lmin-1 /0.3 – 2.6 galmin-1 |
| Cooling water supply pressure | 2 – 10 barg / 29 – 145 psig |
| Seal purge flow (maximum), regulated to 0.3 - 0.5 barg (5 – 7 psig) |
20 l min-1 / 0.7 ft3min-1 |
| Seal purge supply pressure(minimum - maximum) | 2 – 10 barg / 29 – 145 psig |
| Noise (max. with exhaust silencer) | |
| 50 Hz | 78 dB(A) |
| 60 Hz | 79 dB(A) |
| Weight (with frame and standard motor) | |
| 50 Hz | 756 kg / 1667 lbs |
| 60 Hz | 848 kg / 1870 lbs |
| Inlet | 3 ANSI / DN80 |
| Outlet | 1.5 ANSI / DN40 |
| Pumping mechanism | 3 stage reversed claw |
* For this solution we consult Edwards
Pliki do pobrania
EDP chemical dry pump datasheet
