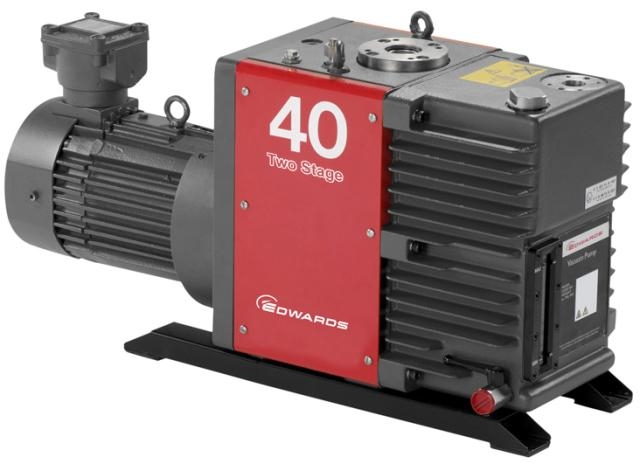

E2M40

Edwards E2M40 series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.
A comprehensive range of accessories is available to allow use on the widest variety of vacuum applications.
Supplied with Ultragrade 70 Oil.

Fomblin® must be purchased separately for PFPE prepared pumps E2M40FX.

Informacje

Features and Benefits

  • Advanced pressurised oil circuit to give effective lubrication even under high gas loads
  • When the pump is switched off, the spring loaded distributor valve provides oil and air suck-back protection
  • Gas Ballast control to assist in handling high water vapour loads
  • Industrial roller bearings on drive shaft for ultimate reliability and long, trouble free life
  • Full height oil sight glass for easy checking of oil level and condition
  • Easy change oil filter, with oil filter condition gauge on larger models
  • Central inlet port to allow easy mounting of mechanical booster pump if required
  • Easy to maintain, with convenient service kits and international customer support.
  • A wide range of accessories to match your application needs
  • The pumps and accessories can be supplied either as individual components or as fully systemised, factory-tested combinations.



Applications

  • Vacuum metallurgy processes
  • Thin film coating technologies
  • Pharmaceutical freeze drying
  • Refrigeration and air conditioning system evacuation, drying, and backfilling
  • Transformer and cable drying and impregnation, insulating oil treatment plant
  • Lamp manufacture
  • Cryogenic vessel evacuation
  • Vacuum drying and distillation in chemical industries
  • Semiconductor device manufacture
  • Backing pump for high vacuum applications
Dane techniczne
Displacement
  50Hz 42.5 m3h-1 / 25 ft3min-1
  60Hz 50.5 m3h-1 / 29.7 ft3min-1
Speed (Pneurop)
  50Hz 37 m3h-1 / 21.8 ft3min-1
  60Hz 44 m3h-1 / 25.9 ft3min-1
Number of stages 2
Ultimate vacuum (total pressure)
  Without gas ballast 1 x 10-3 mbar / 7.7 x 10-4 Torr
  With gas ballast 7 x 10-3 mbar / 5.4 x 10-3 Torr
Ultimate with Fomblin®
  Without gas ballast 1 x 10-2 mbar
Inlet connection ISO40
Outlet connection 25 mm flange suitable for NW25
Max outlet pressure 0.5 bar gauge
Max inlet pressure for water vapour 7 mbar / 5.3 Torr
Max water vapour pumping rate 0.2 kg h-1 / 0.4 lb h-1
Weight 82 kg / 179 lb
Motor protection rating IP55
Motor power
  50Hz 1.1 kW / 1.5 hp
  60Hz 1.5 kW / 2 hp
Standard oil capacity
  maximum 3.5 litre / 3.2 qt
  minimum 1.32 litre / 1.6 qt
PFPE oil capacity
  maximum 3.5 litre / 3.2 qt
  minimum 1.32 litre / 1.6 qt
Recommended oil Ultragrade 70
Noise level 65 dB (A)
Pliki do pobrania
EM40/80 Rotary Vacuum Pumps
