E2M1.5

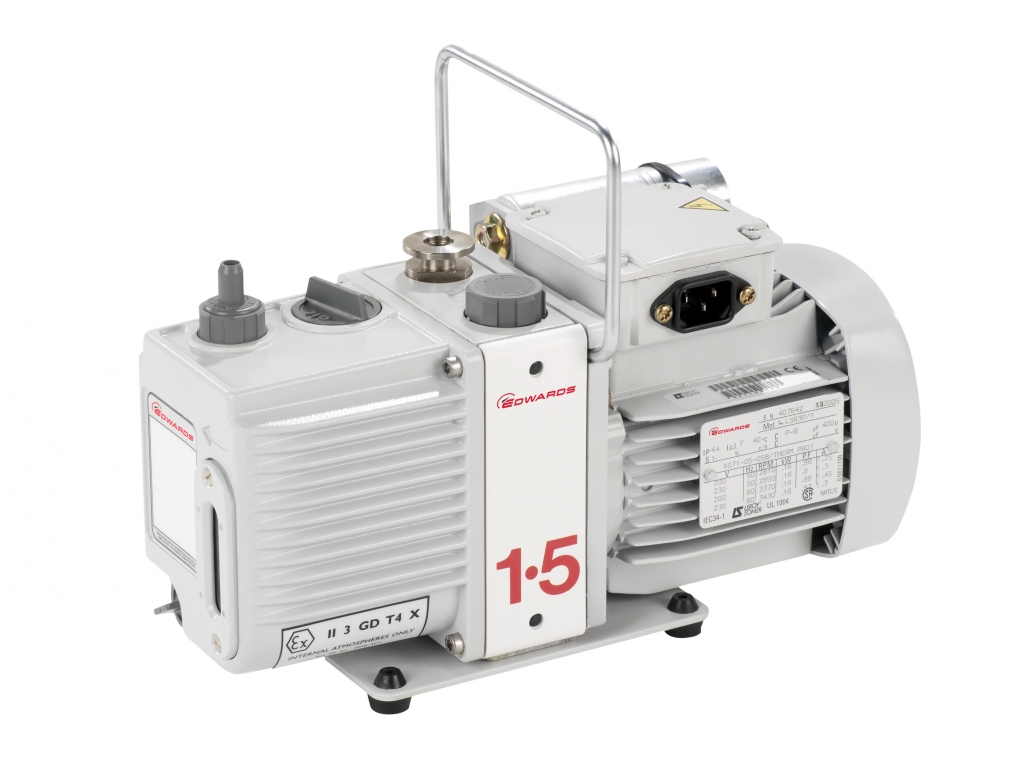

The E2M1.5 is a two stage oil sealed rotary vane pump suitable for many bench type applications. The pump features an alternative inlet connection position at the side of the pump so that overall installation height can be reduced to a minimum when required.
The interstage version features an additional pumping port to provide a rough vacuum for auxiliary duties.
Technology
This is a two stage oil sealed rotary vane pump which has a pressurised oil system that lubricates the pump shaft bearing surfaces and rotor sealing faces. The pump has an oil distribution valve which prevents discharge of oil to the pump interior (suckback) after the pump stops. The pumping chambers are air-tight, so this arrangement prevents oil suckback unless the gas ballast valve is open.
You can inspect the level and condition of oil in the oil box reservoir through the oil sight-glass. An oil filler-plug is fitted to the top of the oil box. The pump has an oil drain-plug to allow either gravity oil drain or pressure oil drain.
| Displacement (swept volume) | |
| 50 Hz | 1.8 m3h-1 / 1 ft3min-1 |
| 60 Hz | 2.2 m3h-1 / 1.3 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 1.6 m3h-1 / 0.8 ft3min-1 |
| 60 Hz | 2.0 m3h-1 / 1.2 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| without gas ballast | 3 x 10-3 mbar / 2.3 x 10-3 Torr |
| with gas ballast | 2.5 x 10-2 mbar / 1.9 x 10-2 Torr |
| Inlet connection | NW10 flange |
| Outlet connection | Nozzle 11 mm external diameter removable from hole tapped 3/8 inch BSP |
| Maximum permitted pressure at outlet | 0.5 bar gauge / 7 psig |
| Maximum inlet pressure for water vapour | 15 mbar / 11 Torr |
| Maximum water vapour pumping rate | 16 gh-1 |
| Motor power 50/60 Hz (IP54) | 0.16 kW |
| Nominal rotation speed 50/60Hz | 2800/3400 rpm |
| Power connector | IEC EN60320 C13 |
| Operating temperature range | 12 - 40 °C |
| Weight | 10 kg / 22 lbs |
| Noise | 54 dB (A) @ 50 Hz |
| Oil capacity - max | 0.28 litre |
| min | 0.2 litre |
| Recommended oil (supplied) | Ultragrade 15 |
