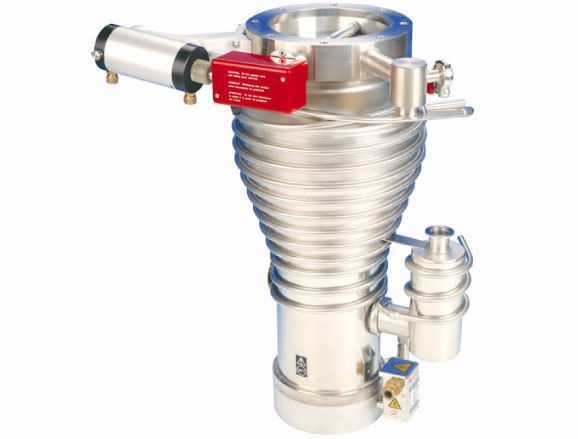

Diffstak 160/700M
The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation.
The Edwards Diffstak 160 (ISO160 inlet) design has been proven over many years with thousands of pumps installed.
This pump has a manually operated high vacuum isolation valve and is supplied with: NW25 elbow, NW25 centering-ring, NW25 clamp, water pipe couplings and ferrules, inlet ISO 160 Co-Seal.
Dane techniczne
| Pumping speed | |
| nitrogen | 700 l s-1 |
| hydrogen | 1300 l s-1 |
| Min backing pump displacement* | 12 m3h-1 |
| Recommended backing pump | RV12 or E2M18 |
| Recommended fluid | Santovac® 5 |
| Fluid charge (dry) | 255 ml |
| Inlet connection compatible with | ISO160 |
| Backing connection | NW25 |
| Cooling water connection | 10 mm compression fittings |
| Heater power | 1.35 kW |
| Min cooling-water flow at 20°C | 115 l h-1 |
| Pneumatic connections† | 6mm coupling x ¼ BSP male stud |
| Pneumatic actuating pressure | |
| Minimum | 2.4bar / 35psi |
| Maximum | 6.9bar / 100psi |
| Weight | |
| 160/700M | 26kg |
| 160/300P | 27kg |
* For maximum throughput
† 160/700P only
