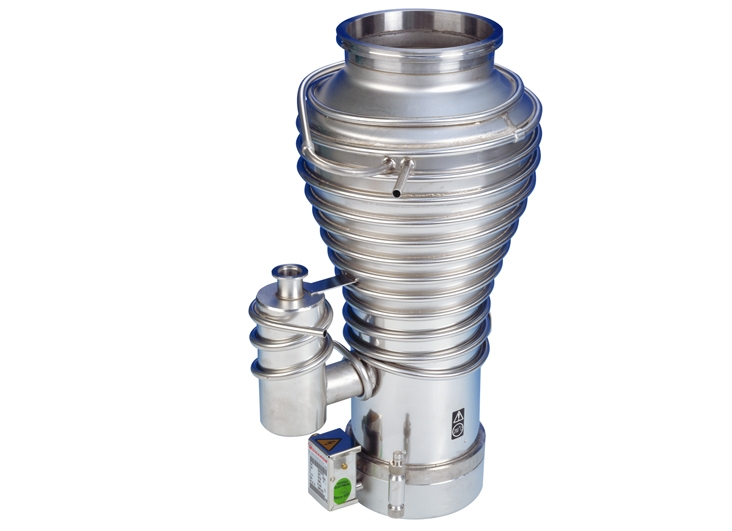

Diffstak 160/700C
The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation.
The Edwards Diffstak 160 (ISO160 inlet) design has been proven over many years with thousands of pumps installed.
This pump has an unvalved ISO collar inlet flange and is supplied with: NW25 elbow, NW25 centering-ring, NW25 clamp, water pipe couplings and ferrules, inlet ISO 160 Co-Seal.
Dane techniczne
| Pumping speed | |
| nitrogen | 760 l s-1 |
| hydrogen | 1410 l s-1 |
| Min backing pump displacement* | 12 m3h-1 |
| Recommended backing pump | RV12 or E2M18 |
| Recommended fluid | Santovac® 5 |
| Fluid charge (dry) | 250 ml |
| Inlet connection | |
| 160/700C | ISO160 |
| 160/700F | 8 inch |
| Backing connection | NW25 |
| Cooling water connection | 10 mm compression fittings |
| Heater power | 1.35 kW |
| Min cooling-water flow at 20°C | 115 l h-1 |
| Weight | |
| 160/700C | 18kg |
| 160/300F | 20kg |
* For maximum throughput
