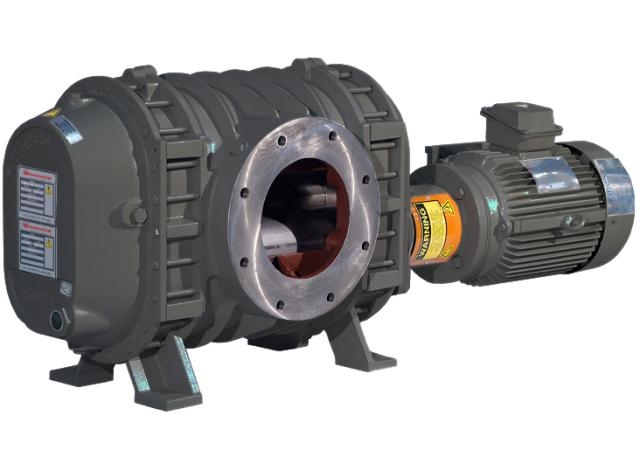

61B MH25

Edwards Superblowers are designed to be used in conjunction with rotary-piston, liquid ring, rotary vane and dry vacuum pumps to increase pumping speed at working pressures and shorten pump down time significantly. The Superblower can be mounted separately or on the inlet of the backing pump to create a compact integrated package.

Featuring an extra large diameter shaft, the 6” Superblower has the capability for use with higher powered motors in addition to ensuring a uniquely rugged and durable mechanical booster. This allows the pumps to operate at their full displacement from atmospheric pressure with an appropriately sized backing pump.

In addition, the 61B Superblower is available with bypass technology which further enhances your productivity while also assuring consistent, reproducible vacuum processing. The bypass valve limits the maximum differential pressure, enabling the booster to start from atmosphere and provide increased pumping capacity over the full pressure range. Eliminating the electrical pressure switch insures continuous booster operation regardless of vacuum level.

The Superblower must be backed by a primary vacuum pump designed to discharge to atmospheric pressure. Examples of suitable backing pumps are listed below:

•     GV Drystar or Chemical Drystar dry pumps
•     Two stage LR series liquid ring pumps
•     RV, EM or EVC oil sealed pumps
•     Microvac series piston pumps

Features and Benefits

•     Mechanical shaft seal offers improved life and serviceability
•     Ringfeder® keyless gear locking system provides stronger, faster timing
•     Drive end roller bearing which resists belt pull and thermal effects
•     Over-sized anti-friction bearings allows increased uptime and longer service intervals
•     Horizontal gas flow configuration
•     Direct drive capability
•     Rugged proven design and construction
•     Large shaft diameters allowing improved performance at high pressures
•     Quiet operation
•     Unique impeller design which is dynamically balanced to minimize vibration
•     High volumetric efficiency
•     High differential pressure offering operation capability
•     Bypass technology to increase pumping capacity

Applications

•     Automotive
•     Chemical processing
•     Heat treatment
•     Leak detection
•     Metallurgy
•     PET processing
•     Pharmaceuticals
•     Thermal processing
•     Transformer drying and cable fluid conditioning
•     Vacuum coating
•     Vacuum melting
•     Many other industrial applications
